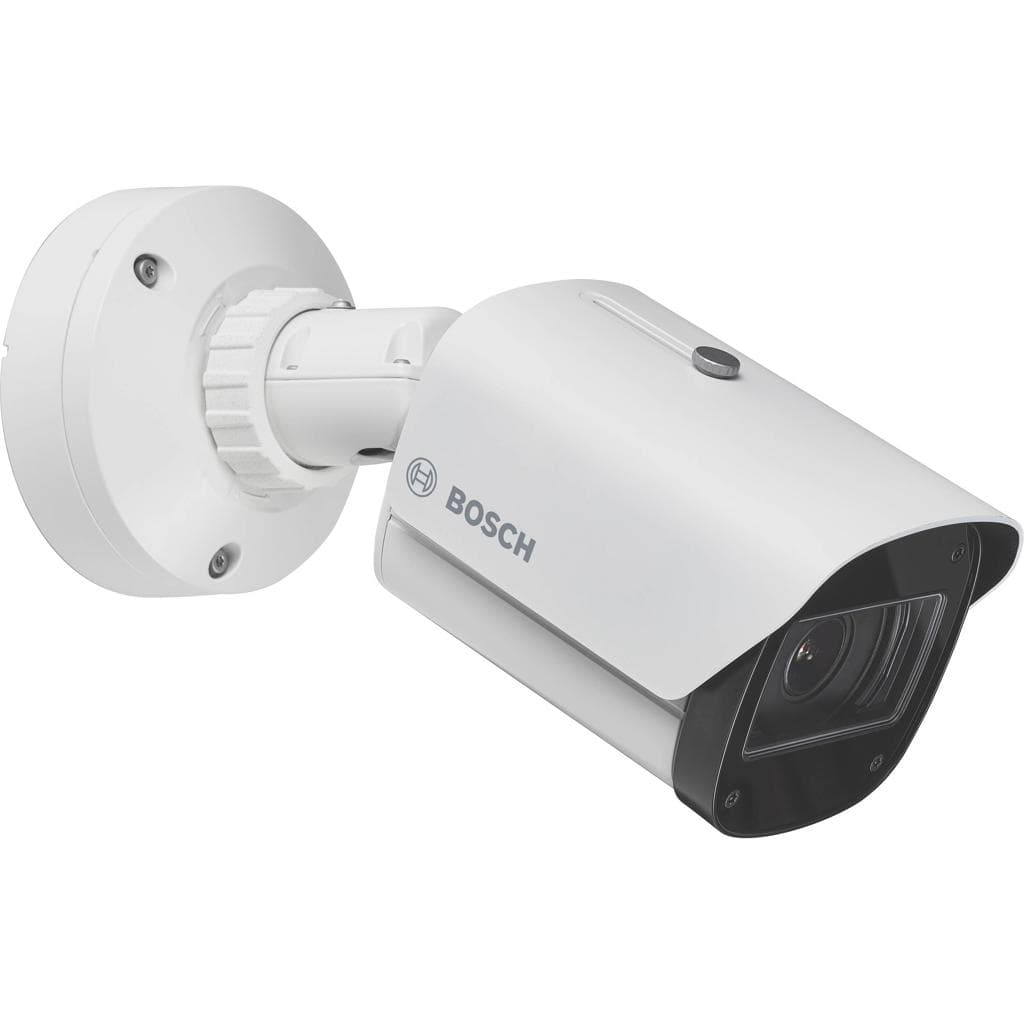

Bosch STQC NBE-7704-AL 8MP 4K Outdoor IR Bullet Camera | DINION 7100i
Bosch STQC NBE-7704-AL 8MP 4K Outdoor IR Bullet Camera | DINION 7100i - View 1
Bosch STQC NBE-7704-AL 8MP 4K Outdoor IR Bullet Camera | DINION 7100i - View 2

Bosch STQC NBE-7704-AL 8MP 4K Outdoor IR Bullet Camera | DINION 7100i

4K Ultra-HD Surveillance with Intelligent IR & AI Video Analytics The Bosch NBE-7704-AL DINION 7100i IR is a professional 8MP 4K outdoor network bullet camera featuring a motorized 4.4–10 mm varifocal lens, HDR, Starlight technology, Intelligent IR illumination and IVA Pro deep-learning video analytics. With IP66/IP67/IP6K9K weather protection and IK10 impact resistance, it is designed for reliable surveillance in demanding indoor and outdoor environments.

8MP / 4K Ultra-HD resolution – Up to 3840 × 2160 for highly detailed surveillance.

30 fps video – Smooth 4K video for monitoring moving subjects.

1/1.8-inch CMOS sensor – Designed for high-quality professional surveillance imaging.

Starlight technology – Enhances image performance in low-light conditions.

HDR – Helps preserve details in both bright and dark areas of the scene.

Motorized varifocal lens – 4.4–10 mm lens provides flexible coverage.

2.3× optical zoom – Allows closer viewing without relying on digital enlargement.

Wide viewing angle – Horizontal field of view from 108° to 44°.

Intelligent IR illumination – Standard 850 nm IR provides up to 60 m night vision.

IVA Pro analytics – Deep-learning analytics for reliable person and vehicle detection.

H.265/H.264/MJPEG – Multiple compression formats for flexible video management.

IP66/IP67/IP6K9K rated – Protection against dust, water and harsh environmental conditions.

IK10 vandal resistance – Strong protection against mechanical impact.

In Stock ( available)
  • The Bosch NBE-7704-AL is a high-performance DINION 7100i IR 8MP bullet camera engineered for applications where high-resolution imaging, intelligent detection and dependable outdoor performance are essential.
  • Its 1/1.8-inch CMOS sensor delivers up to 3840 × 2160 resolution at 30 fps, providing detailed 4K video for monitoring people, vehicles, entrances, perimeters and large outdoor areas. The motorized 4.4–10 mm varifocal lens provides a horizontal field of view from 108° to 44°, allowing installers to adjust the viewing area according to the application.
  • Technical Specifications
  • Brand - Bosch
  • Model - NBE-7704-AL
  • Series - DINION 7100i IR
  • Camera Type - Outdoor Network Bullet Camera
  • Resolution - 8MP
  • Maximum Resolution - 3840 × 2160
  • Frame Rate - Up to 30 fps
  • Image Sensor - 1/1.8-inch CMOS
  • Lens Type - Motorized Varifocal
  • Focal Length - 4.4–10 mm
  • Optical Zoom - 2.3×
  • Horizontal FOV - 108°–44°
  • Vertical FOV - 58°–24°
  • Low-Light Technology - Starlight
  • HDR - Yes
  • IR Illumination Intelligent - IR, 850 nm standard
  • IR Distance - Up to 60 m
  • Video Analytics - IVA Pro
  • Video Compression - H.265 / H.264 / MJPEG
  • Night Vision - Yes
  • Protection Rating - IP66 / IP67 / IP6K9K
  • Impact Protection - IK10
  • Power - PoE / 12 VDC / 24 VAC
  • Storage - MicroSD card support
  • Operating Temperature - Approx. -50°C to +60°C
  • Application - Indoor / Outdoor
