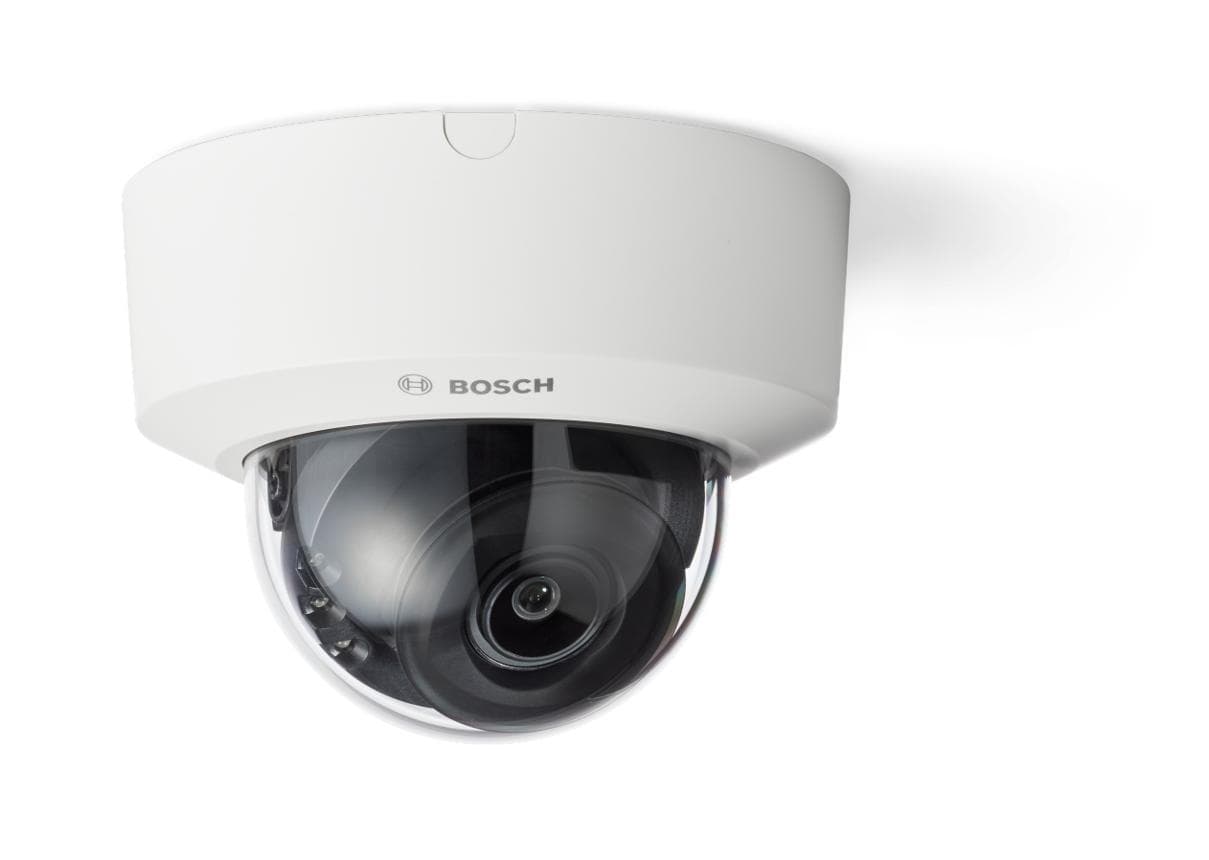

Bosch NDE-3703-AL FLEXIDOME 3100i IR 5MP Outdoor Network Dome Camera
The Bosch NDE-3703-AL is a 5MP outdoor network dome camera featuring a motorized 3.3–10.2 mm varifocal lens, integrated IR illumination up to 30 m, 120 dB HDR, and intelligent IVA Pro Buildings analytics. Its IP66 and IK10-rated housing provides reliable protection for demanding indoor and outdoor surveillance applications.
5MP High-Resolution Imaging – Captures detailed surveillance video up to 2592 × 1944.
Motorized Varifocal Lens – 3.3–10.2 mm lens with motorized zoom and focus for flexible coverage.
30 m IR Night Vision – Integrated infrared illumination supports clear monitoring in darkness.
120 dB HDR – Preserves image detail in scenes with strong highlights and shadows
IVA Pro Buildings Analytics – Intelligent detection and tracking of people and vehicles.
IP66 + IK10 Protection – Weather-resistant and impact-resistant housing for demanding installations.
- Model NDE-3703-AL
- Series Bosch FLEXIDOME Outdoor 3100i IR
- Camera Type Outdoor IP Fixed Dome
- Image Sensor 1/2.7-inch CMOS
- Total Pixels Approx. 5 MP
- Effective Resolution 2592 × 1944
- Video Resolution 5MP 4:3 up to 2592 × 1944; 3.8MP 16:9 up to 2592 × 1456
- Frame Rate 1–30 fps
- Lens 3.3–10.2 mm motorized varifocal
- Aperture F1.6–F3.29
- Iris DC iris
- Lens Control Motorized zoom and focus
- Horizontal FOV 101.4°–30.1°
- Vertical FOV 69.6°–21.8°
- IR Illumination Up to 30 m / 98 ft
- Day/Night Automatic IR-cut filter
- Minimum Illumination 0.14 lux color; 0.03 lux monochrome; 0 lux with IR
- HDR 120 dB
- Video Compression H.265, H.264, M-JPEG
- Video Streaming Multiple configurable streams
- Analytics IVA Pro Buildings; people and vehicle detection/tracking
- Video S/N Ratio >55 dB
- MicroSD Up to 2 TB
- Network Interface RJ45 Ethernet
- PoE IEEE 802.3af / 802.3at Type 1, Class 3
- Power Consumption Approx. 4.5–7.9 W
- Ingress Protection IP66
- Impact Protection IK10
- Operating Temperature -30°C to +50°C
- Dimensions Approx. Ø137 × 111 mm
- Weight Approx. 789.5 g
- ONVIF Supported
- Security Secure Element/TPM, HTTPS, 802.1X and certificate-based security features
- Compliance NDAA compliant; applicable CE, FCC, UL, UKCA and other regional certifications
