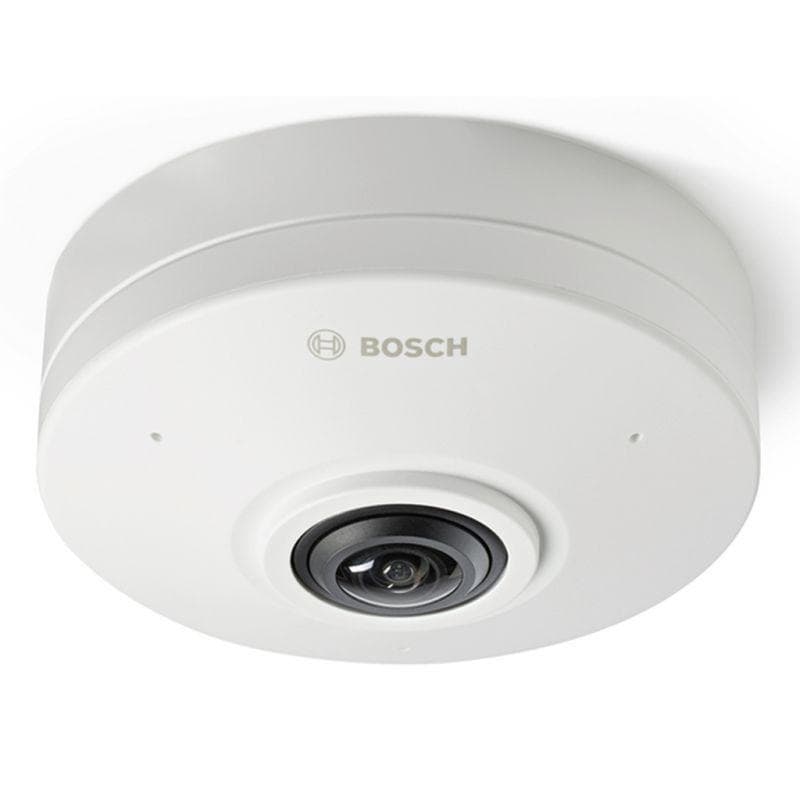

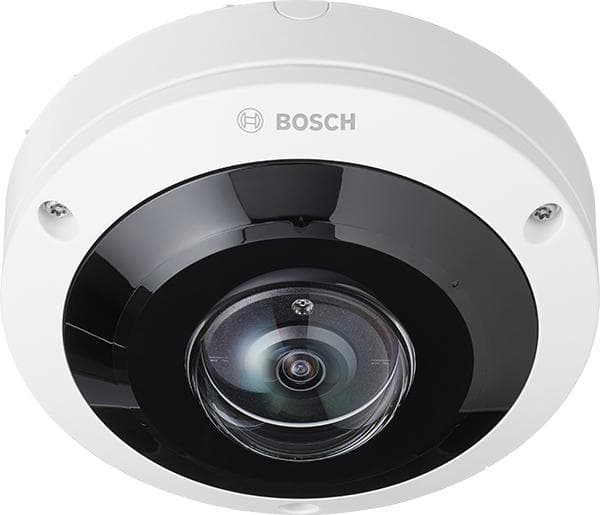

Bosch NDS-5704-F360 FLEXIDOME Panoramic 5100i 12MP 360° Indoor IP Camera
The Bosch NDS-5704-F360 FLEXIDOME panoramic 5100i is a high-resolution 12MP 360° panoramic network camera designed to provide comprehensive area surveillance from a single device. Its stereographic panoramic lens delivers full 360° coverage without traditional blind spots, while the 3008 × 3008 resolution at up to 30 fps provides detailed panoramic imagery. Built-in Intelligent Video Analytics, Intelligent Audio Analytics, edge/client-side dewarping, HDMI output and H.265 compression make it a powerful solution for retail, commercial and wide-area surveillance.
12MP High Resolution – 3008 × 3008 for highly detailed panoramic imaging.
360° Panoramic Coverage – Complete area awareness from one camera.
1.26mm Fixed Panoramic Lens – Designed for full-area viewing.
Up to 30 fps – Smooth real-time video.
HDR – Helps retain details in bright and dark areas.
Stereographic Projection – Improves image usability toward the edges of the panoramic view.
Edge & Client-Side Dewarping – Flexible viewing and recording.
Intelligent Video Analytics – Detects, tracks and classifies objects.
MicroSD Local Storage – Edge recording capability.
Built-in Microphone Array – Supports Intelligent Audio Analytics.
NDAA Compliant – Suitable for applicable compliant projects.
- Technical Specifications
- Specification Details
- Brand Bosch
- Model NDS-5704-F360
- Series FLEXIDOME panoramic 5100i
- Camera Type 360° Panoramic Fixed Dome
- Resolution 12MP
- Maximum Resolution 3008 × 3008
- Frame Rate Up to 30 fps
- Sensor CMOS
- Lens Stereographic Panoramic Fixed Lens
- Focal Length 1.26mm
- Coverage 360° panoramic
- Effective Image Resolution Approx. 9MP considering image-circle projection
- HDR Yes
- Dewarping Edge / Client-side
- Video Compression H.265 / H.264 / MJPEG
- Analytics Intelligent Video Analytics
- Audio Analytics Intelligent Audio Analytics
- Audio Built-in microphone array
- Camera Trainer Yes
- Local Storage MicroSD
- Network 10/100/1000 Base-T Ethernet
- Power PoE
- HDMI Output Yes
- Impact Protection IK08
- Operating Temperature -10°C to +45°C
- Humidity 5–93% RH non-condensing
- Dimensions Ø110 × 47.7mm
- Weight Approx. 0.31kg
- Color White / RAL 9003
- Mounting Surface mount
- Gyrosensor Yes
- ONVIF Profiles S, G, M & T
- Cybersecurity Secure Element / TPM
