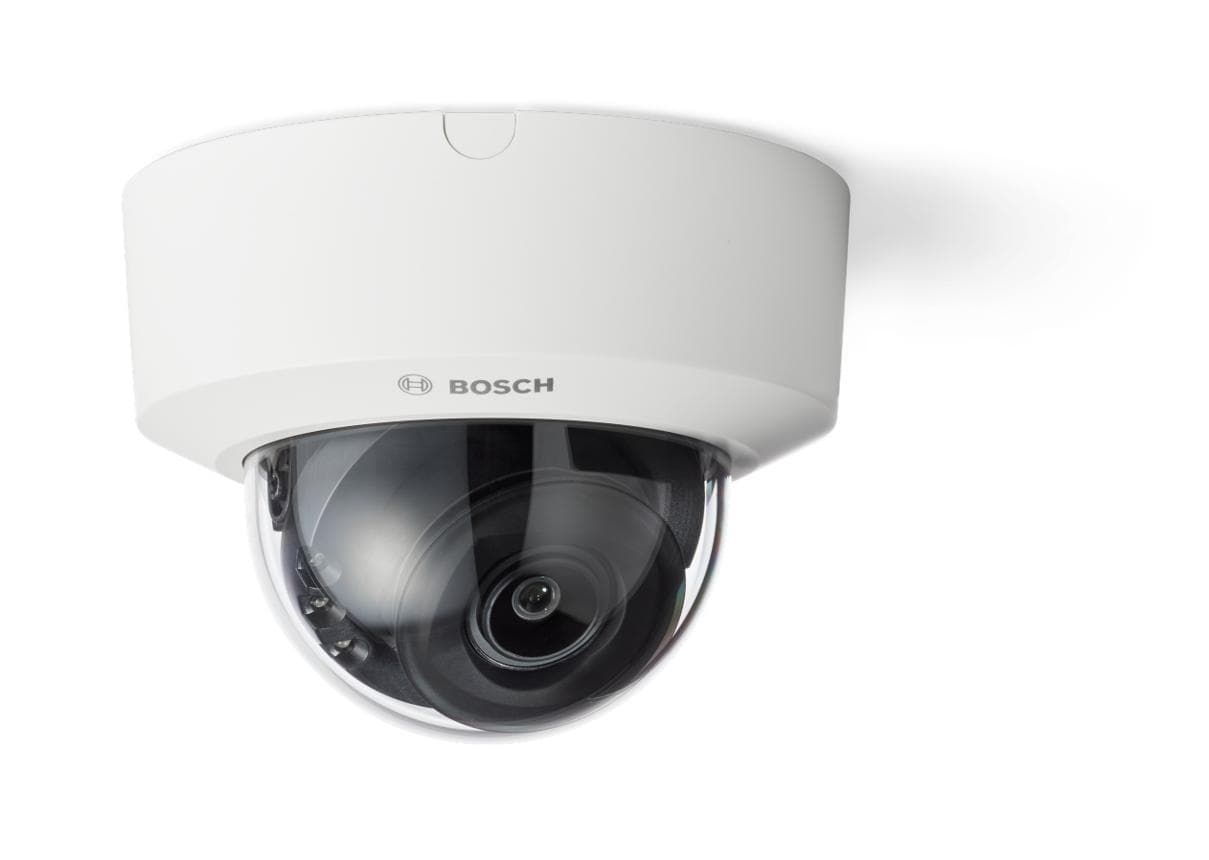

Bosch NDE-3702-AL FLEXIDOME outdoor 3100i IR 2MP Fixed Dome Network Camera
The Bosch NDE-3702-AL is a professional 2MP outdoor IR network dome camera delivering 1080p video at up to 30 fps. It features a 3.3–10.2 mm motorized varifocal lens, integrated 30 m IR illumination, HDR, IVA Pro Buildings deep-learning analytics, H.265/H.264 compression and PoE. Its IP66 weather protection and IK10 impact resistance make it suitable for demanding outdoor surveillance applications.
2MP Full HD Imaging – Provides 1920 × 1080 resolution at up to 30 fps for clear surveillance video.
30 m IR Night Vision – Built-in 850 nm IR illumination supports surveillance in complete darkness.
Motorized Varifocal Lens – 3.3–10.2 mm lens provides a flexible 106°–31.2° horizontal field of view.
IVA Pro Buildings Analytics – Deep-learning technology provides reliable detection of people and vehicles.
IP66 + IK10 Protection – Designed to withstand outdoor weather conditions, dust, water and impact/vandalism.
Secure PoE Network Camera – Advanced cybersecurity with TPM/Secure Element plus PoE simplifies professional installation.
- Brand Bosch, Model NDE-3702-AL
- Series FLEXIDOME outdoor 3100i IR
- Camera Type Outdoor Fixed Dome Network Camera
- Image Sensor 1/2.8-inch CMOS
- Resolution 2MP / 1920 × 1080
- Frame Rate Up to 30 fps
- Lens 3.3–10.2 mm motorized varifocal
- Aperture F1.6–F3.29
- Iris DC Iris
- Zoom / Focus Motorized
- Horizontal FOV 106°–31.2°
- Vertical FOV 55.2°–17.5°
- Minimum Illumination 0.06 lux color; 0 lux monochrome with IR
- Day/Night Automatic IR-cut filter
- IR Illumination Up to 30 m / 98 ft
- IR Wavelength 850 nm
- HDR High Dynamic Range
- Shutter Speed 1/25–1/15,000 s
- Video Compression H.265/HEVC, H.264, M-JPEG
- Video Streaming Multiple configurable streams
- Intelligent Streaming Bosch Intelligent Streaming
- Video S/N Ratio >55 dB
- Video Analytics IVA Pro Buildings
- AI Detection Person and vehicle detection/classification
- Analytics Functions Line crossing, enter/leave field, loitering, counting, occupancy, object tracking and related functions
- Local Storage MicroSD / MicroSDHC / MicroSDXC
- Maximum Storage Up to 2 TB
- Network Interface 10/100BASE-T Ethernet
- Connector RJ45
- PoE IEEE 802.3af / 802.3at Type 1
- Power Consumption Approx. 4.2–7.6 W
- ONVIF Profile S, G, T and M
- Network Protocols IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTP/RTCP, RTSP, FTP, DHCP, NTP, SNMP, DNS, DDNS, iSCSI, UPnP and others
- Cybersecurity Secure Element with TPM, secure boot, certificate-based security and encrypted communications
- Pan 0°–355°
- Tilt 0°–85°
- Roll 0°–355°
- Ingress Protection IP66
- Impact Protection IK10
- Housing Aluminum / polycarbonate
- Operating Temperature -30°C to +50°C
- Operating Humidity 5–100% RH
- Storage Temperature -50°C to +70°C
- Dimensions Approx. Ø137 × 111 mm
- Weight Approx. 789.5 g
- Country of Origin Thailand
- Compliance NDAA, CE, FCC, UL, UKCA, BIS, RCM, VCCI, WEEE and applicable standards
