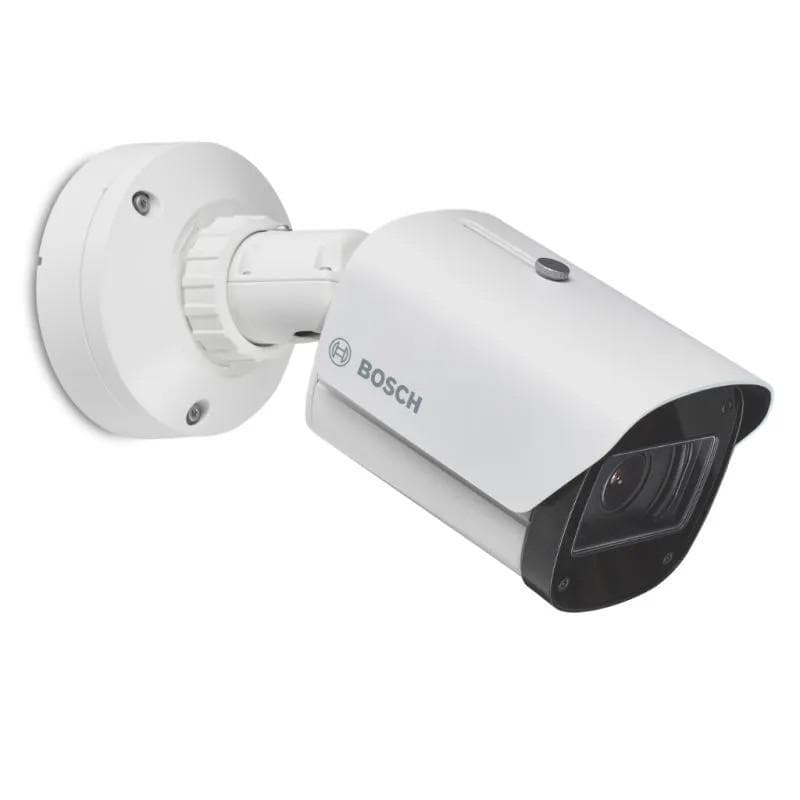

Bosch NBE-7704-ALX DINION 7100i IR – 8MP 4K HDR X AI Bullet Camera
Advanced 4K Surveillance with Starlight X, HDR X & Intelligent AI Analytics The Bosch NBE-7704-ALX DINION 7100i IR is a rugged 8MP 4K outdoor AI bullet camera featuring Starlight X, advanced HDR X, a motorized 5.9–13 mm varifocal lens, Intelligent IR illumination up to 80 m, and IVA Pro deep-learning video analytics. Its robust IP66/IP67 and IK10 protection makes it ideal for critical outdoor security, perimeter protection and traffic monitoring.
8MP / 4K UHD – 3840 × 2160 resolution for highly detailed surveillance.
1/1.2-inch Sensor – Large sensor designed for excellent image quality and low-light performance.
Starlight X Technology – Advanced low-light sensitivity with enhanced image detail.
HDR X Technology – High dynamic range with improved handling of moving objects and difficult lighting.
120 dB HDR X – Excellent detail retention in high-contrast scenes.
5.9–13 mm Motorized Varifocal Lens – Flexible wide-to-telephoto viewing.
110°–48° Horizontal FOV – Adjustable coverage for different surveillance zones.
Up to 80 m Intelligent IR – Long-range 850 nm infrared illumination.
Optional 940 nm Invisible IR – Discreet night-time illumination option.
IVA Pro Analytics – Deep-learning-based detection of people and vehicles.
H.265 / H.264 / MJPEG – Efficient and flexible video compression.
Up to 4 Configurable Streams – Multiple streams for recording, monitoring and analytics.
Electronic Image Stabilization – Helps maintain stable video in vibration-prone installations.
Dual microSD Support – Local recording and storage options.
IP66 / IP67 – Protection against dust and water for outdoor deployment.
IK10 – High impact and vandal resistance.
NEMA 4X / Rugged Construction – Suitable for demanding outdoor environments.
PoE / 12 VDC / 24 VAC – Flexible installation and power options.
ONVIF Conformant – Supports integration with compatible security and VMS platforms.
- The Bosch NBE-7704-ALX is a professional DINION 7100i IR 8MP HDR X bullet camera designed for mission-critical outdoor surveillance applications where image quality, intelligent analytics and rugged construction are essential.
- Its 1/1.2-inch sensor with 8MP resolution provides detailed 3840 × 2160 4K UHD video at up to 30 fps. The larger sensor is combined with Bosch Starlight X technology, delivering significantly improved low-light sensitivity while maintaining excellent image detail.
- The camera's HDR X technology is designed to preserve details in both bright and dark areas while reducing the motion blur and artefacts commonly associated with conventional HDR. This makes it particularly effective for scenes with strong backlighting, vehicle headlights and rapidly changing illumination.
- A motorized 5.9–13 mm P-Iris varifocal lens provides approximately 110° to 48° horizontal viewing coverage, allowing installers to adjust the field of view according to the surveillance requirement.
- For night surveillance, the camera incorporates powerful 850 nm Intelligent IR illumination up to 80 m. Optional 940 nm invisible IR and white-light illumination modules provide additional flexibility for applications requiring discreet or specialized lighting.
- Built-in IVA Pro Buildings, IVA Pro Perimeter and IVA Pro Privacy analytics use deep-learning technology to provide reliable detection and classification of people and vehicles. Additional analytics such as traffic monitoring, license plate recognition and vehicle make/model recognition can be available through licensing.
- The NBE-7704-ALX is engineered for demanding environments, featuring IP66/IP67 weather protection, IK10 impact resistance and exceptional corrosion resistance. Bosch positions the camera for applications including traffic monitoring, critical infrastructure and perimeter security.
- Technical Specifications
- Brand - Bosch
- Model - NBE-7704-ALX
- Series - DINION 7100i IR
- Camera Type - Outdoor Network Bullet Camera
- Resolution - 8MP / 4K UHD
- Maximum Resolution - 3840 × 2160
- Maximum Frame Rate - 30 fps
- Image Sensor - 1/1.2-inch CMOS
- Lens Type - Motorized P-Iris Varifocal
- Focal Length - 5.9–13 mm
- Horizontal FOV - 110°–48°
- Vertical FOV - 59°–27°
- Low-Light Technology - Starlight X
- HDR Technology - HDR X
- HDR Range - Up to 128 dB
- IR Technology - Intelligent IR
- Standard IR Wavelength - 850 nm
- Maximum IR Range - Up to 80 m
- Optional IR - 940 nm Invisible IR
- Video Analytics - IVA Pro
- Video Compression - H.265 / H.264 / MJPEG
- Video Streams - Up to 4 configurable streams
- Local Storage - Dual microSD
- Image Stabilization - Electronic Image Stabilization
- Weather Protection - IP66 / IP67
- Impact Protection - IK10
- Environmental Protection - NEMA 4X
- Power Options - PoE / 12 VDC / 24 VAC
- Application - Indoor / Outdoor
- Primary Applications Perimeter, Traffic & Critical Infrastructure
