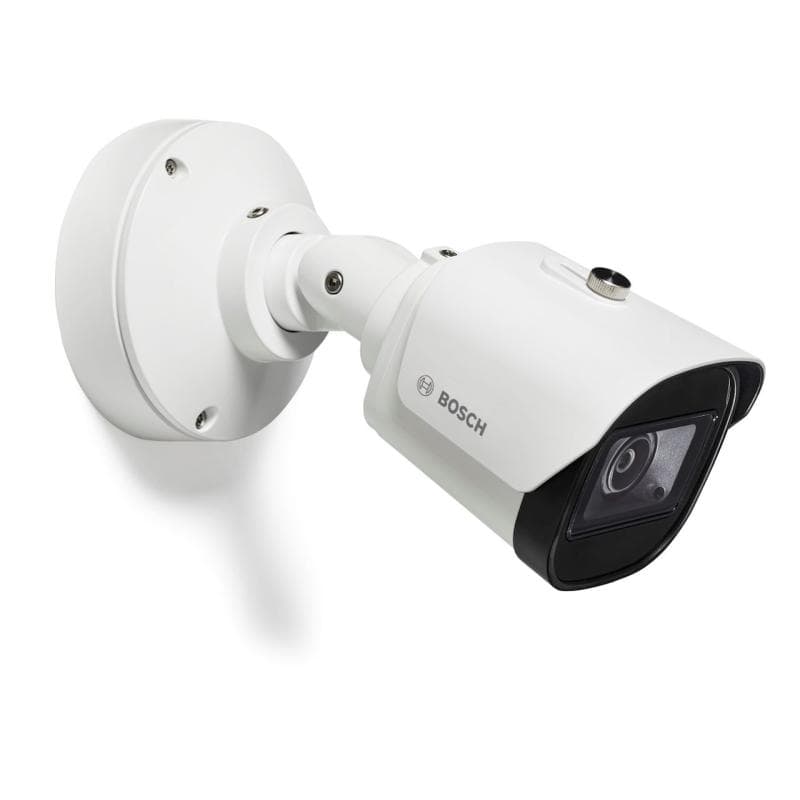

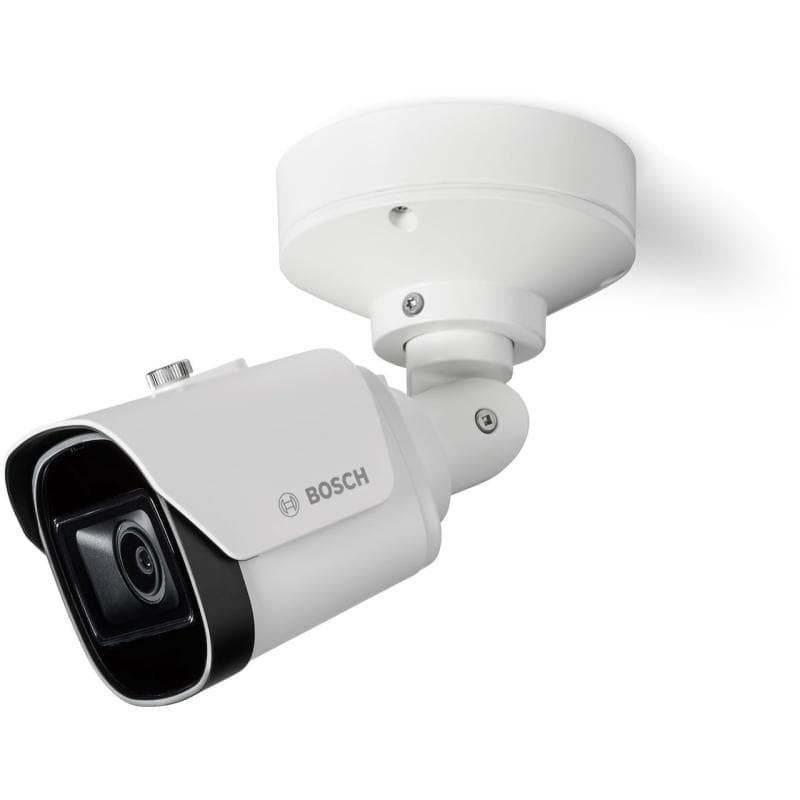

Bosch NBE-3703-AL DINION 3000i IR 5MP Vandal-Resistant Outdoor Bullet Camera
The Bosch NBE-3703-AL is an enterprise-grade 5-Megapixel outdoor bullet camera designed for round-the-clock commercial security. Engineered with an Automatic Varifocal (AVF) motorized lens, built-in Smart IR night vision (30m), and Essential Video Analytics (EVA), it delivers exceptional picture clarity and actionable threat intelligence in harsh outdoor environments and high-contrast lighting conditions.
5MP High Resolution – Up to 2592 × 1944 for detailed surveillance.
Motorized Varifocal Lens – 3.3–10.2mm for flexible scene coverage.
101°–30° Horizontal FOV – Adjust the viewing angle according to installation requirements.
30 fps – Smooth video capture.
HDR – Helps preserve detail in bright and dark portions of a scene
Integrated IR Illuminator – Up to 30m / 98ft night viewing distance
IVA Pro Buildings – Deep-learning detection and tracking of people and vehicles.
Intelligent Streaming – Optimizes bandwidth and storage requirements.
H.265 / H.264 / MJPEG – Multiple compression options.
MicroSD Recording – Supports local/edge recording.
PoE – Power and network connectivity through one Ethernet cable.
IP66 – Protection against dust and water.
IK10 – High impact/vandal resistance.
TPM / Secure Element – Enhanced cybersecurity.
ONVIF Profiles G, M, S & T – Broad VMS compatibility.
NDAA Compliant – Suitable for applicable compliant projects
- Technical Specifications
- Specification Details
- Brand Bosch
- Model NBE-3703-AL
- Series DINION 3100i IR
- Camera Type Outdoor Network Bullet
- Resolution 5MP
- Maximum Resolution 2592 × 1944
- Frame Rate Up to 30 fps
- Image Sensor 1/2.7" CMOS
- Lens Type Motorized Varifocal
- Focal Length 3.3–10.2mm
- Horizontal FOV 101°–30°
- Vertical FOV 70°–22°
- Maximum Aperture F1.6
- IR Range Up to 30m / 98ft
- Day/Night Automatic IR-cut filter
- HDR Yes
- Video Compression H.265 / H.264 / MJPEG
- Analytics IVA Pro Buildings
- Object Detection Person / Vehicle
- Local Storage MicroSD, up to 2TB
- Network 10/100BASE-T Ethernet
- Power PoE
- Weather Protection IP66
- Impact Protection IK10
- Operating Temperature -30°C to +50°C
- ONVIF Profiles G, M, S & T
- Application Outdoor / Vandal-prone
