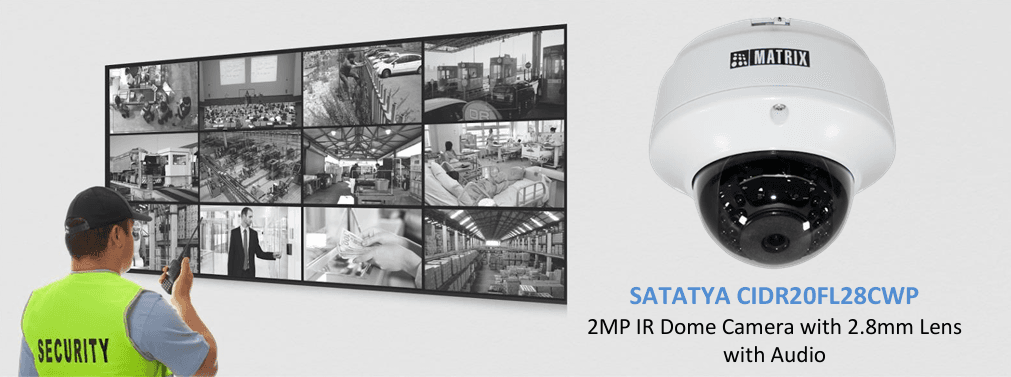

Matrix 2MP IR Dome Camera with 2.8mm Lens with Audio (SATATYA CIDR20FL28CWP)
SATATYA CIDR20FL28CWP 2MP IR Dome Camera with 2.8mm Lens with Audio.Resolution 2 MP (1937 x 1080) Sensor Type and Size 1/2.8" SONY - CMOS 2.12MP Active Pixel Progressive Scan RGB CMOS, Back-Illuminated Image sensor ( STARVIS Series) Spectral Response 400-1000nm LENS Minimum Illumination Color - 0.01 Lux @ F1.2 (AGC ON); Monochrome - 0 Lux Focal Length 2.8mm Focus Range 0.3m to infinity Field of View (FOV) HFOV – 106.9° VFOV – 56.9° DFOV – 127.9° Lens Type/Lens Mount IR corrected aspherical lens; M12 Focus Fixed focus Aperture (F#) F 1.6/ F 2.0 Iris Type Fixed IR Range Up to 50m
2MP IR Dome Camera with Audio Support and 2.8mm Lens SATATYA CIDR20FL28CWP
Better Images Even in Low Light with Sony STARVIS Back-Illuminated CMOS Sensor
Proper Representation of Dark and Light Areas with True WDR 120 dB
Optimised Storage with H.265, H.264, MJPEG Video Compression
Extra Wide Field of View (HFOV 106.9°)
Night Vision (IR Range up to 50 meters)
512 GB SD Card for Edge Recording
Dimensions (mm): Diameter Φ158 x Length 134
Matrix Project Series Dome IP Cameras are built using superior components such as Sony STARVIS sensor and high MTF
lens to offer unmatched image quality especially during the low light conditions. Powered by True WDR algorithm, these
cameras offer consistent image quality even in highly varying light conditions. Built in intelligent analytics including Motion
Detection, Intrusion Detection, Trip Wire, etc. ensure real-time security. Moreover, H.265 compression and Automatic
Motion based Frame Rate Reduction save bandwidth and storage up to 50%.
TECHNICAL SPECIFICATIONS
IMAGE SENSOR
Resolution 2 MP (1937 x 1080)
Sensor Type and Size
1/2.8" SONY - CMOS 2.12MP Active Pixel Progressive Scan RGB CMOS,
Back-Illuminated Image sensor ( STARVIS Series)
Spectral Response 400-1000nm
LENS
Minimum Illumination Color - 0.01 Lux @ F1.2 (AGC ON); Monochrome - 0 Lux
Focal Length 2.8mm
Focus Range 0.3m to infinity
Field of View (FOV)
HFOV – 106.9°
VFOV – 56.9°
DFOV – 127.9°
Lens Type/Lens Mount IR corrected aspherical lens; M12
Focus Fixed focus
Aperture (F#) F 1.6/ F 2.0
Iris Type Fixed
IR Range Up to 50m
IR Led Wavelength 850nm
IR Switching Auto/ Manual
AUDIO INTERFACE
Audio IN 1
Audio OUT 1
Two-way Audio Supported
Audio Compression G.726 ,G.711 a-law and u-law
Alarm In Yes
Alarm Out Yes
HARDWARE SPECIFICATIONS
SD Card Up to 512GB
Camera Adjustment Angle Pan - 0° to 330°, Tilt - 0° to 75°, Rotate - 0° to 180°
IMAGE AND VIDEO
No of Stream Profiles 4
Stream Profiles
Profile 1: 1920 x 1080p @30fps (H.265/ H.264)
Profile 2: D1 @30fps (H.265/H.264)
Profile 3: 1080p(2MP)/720p/D1/2CIF/CIF up to 15 fps
(H.264/H.265/MJPEG)
Profile 4: 720p/D1/2CIF/CIF up to 15 fps (H.265/H.264/MJPEG)
