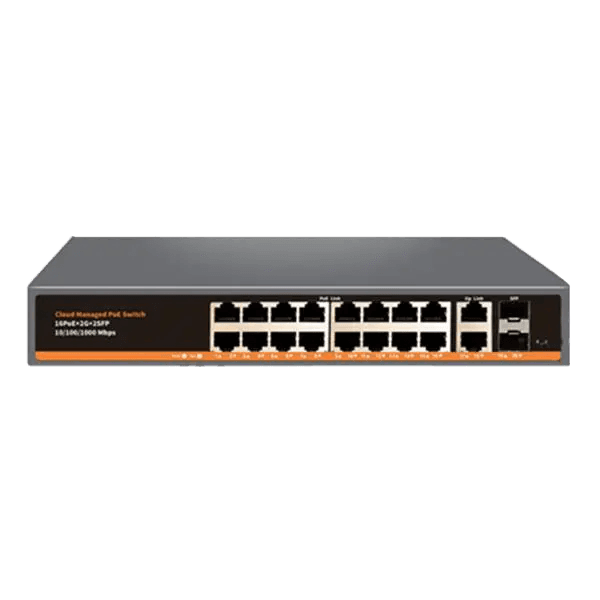

HI-Focus 16 PORT POE SWITCH
Product Features 16x1000Mbps PoE ports 2x1000Mbps Uplink ports 2x1000Mbps SFP ports Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management. WEB, TELNET, CLI management Port lightning protection 4KV POE POWER SUPPLY PoE Protocol IEEE 802.3af/at Output Power of PoE Port Single Port≤30W PoE Output Voltage DC52V±5% PoE Power Pin 1/2+, 3/6- PoE Power Distance ≤250m Network Medium 10/100/1000BASE-TX: 5 class and above non shielded twisted pair Whole Power MAX: 250W
16 PORT POE SWITCH
Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management
NETWORK SPECIFICATION
Network Standard
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.1Q, IEEE 802.1p
Network Medium
10/100/1000BASE-TX: 5 class and above non shielded twisted pair
Data Distance
≤100M
Switch Capability
40Gbps
Forwarding Rate
10BASE-tx: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port
MAC Address
MAC address table 8K
Port Function
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Forwarding Rate of Packet
29.76Mpps
SOFTWARE SPECIFICATION
Web management
Support Double IP; Default IP: 10.77.88.100 Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP; User: admin, Password: admin
Management IP
Support static IP settings Support DHCP dynamic acquisition
User Setting
Support change user name, change log-in password
Port Management
Support port disabling and enabling; Support MTU setting Support speed, duplex, and flow control settings
Link Aggregation
Supports up to 4 aggregation groups, with a maximum of 8 members per group;
Port Isolation
Support port isolation
loopback protection
Support loopback protection
Port Mirroring
Supports up to 4 sets of mirror sessions; Support mirroring of incoming and outgoing directional messages for ports and aggregation groups
Port speed limit
Support limits the speed of port’s in and out
EEE
Support energy-saving Ethernet protocol
PoE
Support PoE configuration
SNMP
Support SNMP v1&v2c; Support SNMP Traps Traps type: device cold and hot start, port up&down, authentication failure
Spanning Tree
Support STP, RSTP
LLDP
Support LLDP link layer discovery protocol
VLAN
Support port VLAN Support 802.1Q VLAN Support Voice VLAN Support Surveillance VLAN
QOS
Support 802.1p (COS) classification, DSCP classification, and port classification. Support SP, WRR, WFQ scheduling strategies
Multicast
Support IGMP Querier
MAC management
Support limit on the number of port MAC address learning Support adding and deleting static MAC addresses Support search of MAC address Support dynamic MAC address table viewing
Storm Suppression
Support storm suppression for unknown unicast, multicast, and broadcast packets
Traffic Monitoring
Support monitoring of the number of bytes sent and received, as well as the number of messages sent and received
Cable Tester
Support detection of cable status and cable length
DHCP Snooping
Support trust port settings; Support DHCP Option 82 configuration
Cloud-network Link
APP cloud management
Network Diagnosis
Support PING
System Management
Support system upgrade Support system backup and restore Support reset Support Web restart Support configuration saving; Support switching between Chinese and English Support system name modification
