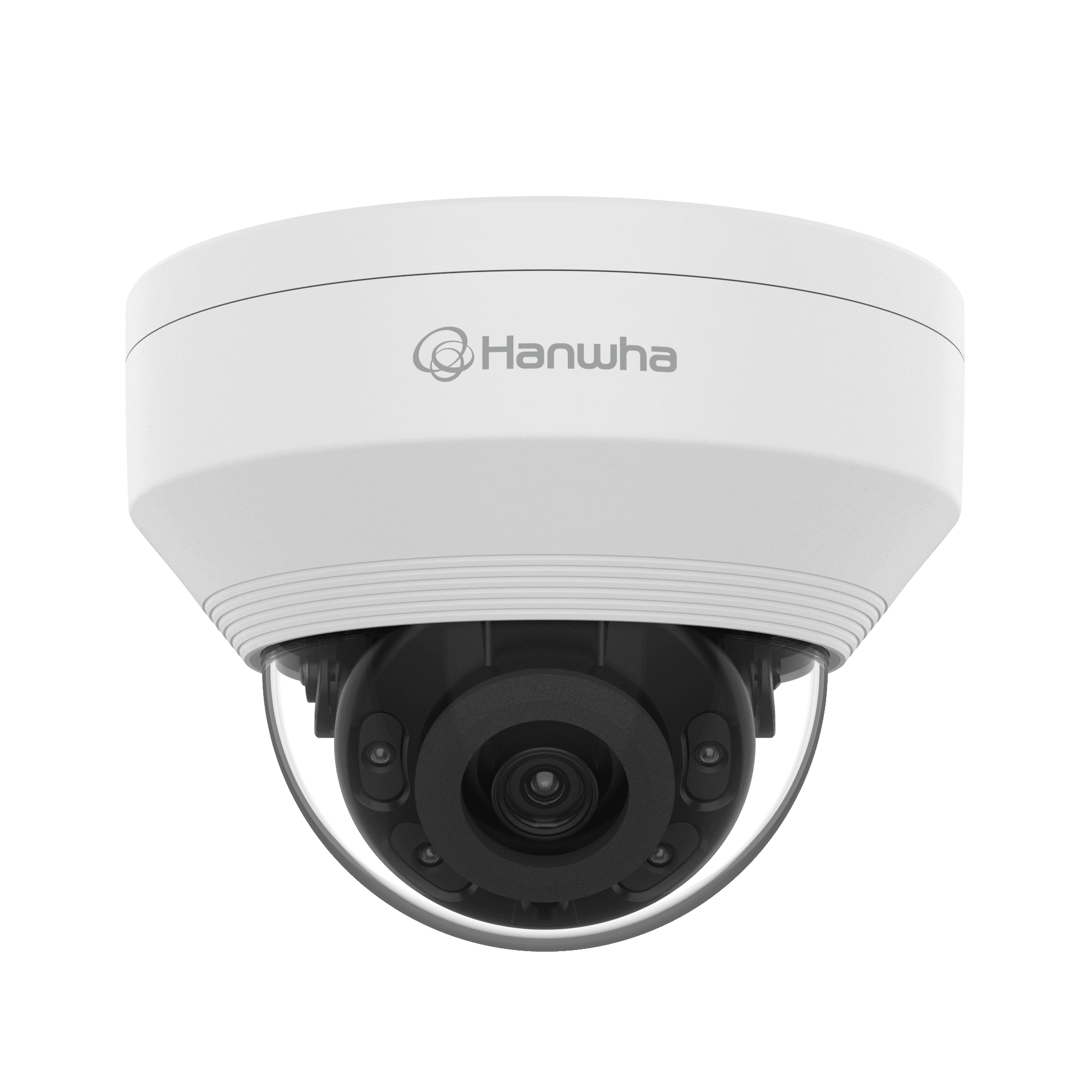

Hanwha 5MP Network IR Vandal Resistant Dome Camera with 2.8mm Lens
5 MP Network IR Vandal Resistant Dome Camera with 2.8mm Lens 5 Megapixel resolution Built-in 2.8mm fixed lens 30fps@all resolutions (H.265/H.264) H.265, H.264, MJPEG codec supported, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line micro SD (128GB) memory slot, PoE IR viewable length 20m, IP66, IK10 Hallway view support Analog video out for easy installation LDC support (Lens Distortion Correction)
QNV-8010R 5 MP Network IR Vandal Resistant Dome Camera with 2.8mm Lens
5 Megapixel resolution
Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Specifications
Datasheet exposure
QNV-8010R
Show > Ver
1
Show > Imaging Device
1/2.8" CMOS
Show > Resolution
5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Hide > Max. Resolution
2592x1944
Hide > Max. Resolution(MP)
5MP
Show > Max. Framerate
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@5MP Max. 2fps)
Show > NETD
None
Show > Pixel Size
None
Show > Min. Illumination
Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Show > Video Out
CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Show > Video Transmission Distance
None
Show > Focal Length (Zoom Ratio)
2.8mm fixed focal
Hide > Max. Focal Length
2.8
Hide > Min. Focal Length
2.8
Hide > Zoom Ratio
None
Hide > Focal Type
Fixed
Show > Max. Aperture Ratio
F2.0
Show > Angular Field of View
H: 105°/ V: 77°/ D: 136°
Hide > Max. Horizontal Angle
105
Hide > Min. Horizontal Angle
105
Hide > Max. Vertical Angle
77
Hide > Min. Vertical Angle
77
Show > Min. Object Distance
None
Show > Focus Control
Fixed
Show > Lens Type
None
Show > Mount Type
None
Show > Optional Lens
None
Show > Pan / Tilt / Rotate Range
0°~350° / 0°~67° / 0°~355°
Hide > Max. Tilt Angle
67
Hide
Min. Tilt Angle
Show > Pan Range
None
Show > Pan Speed
None
Show > Tilt Range
None
Show > Tilt Speed
None
Show > Rotate Range
None
Show > Sequence
None
Show > Preset Accuracy
None
Show > Camera Title
Displayed up to 85 characters
Show > Direction Indicator
None
Show > Day & Night
Auto(ICR)
Show > Backlight Compensation
BLC, WDR, SSDR
Show > Wide Dynamic Range
120dB
Show > Digital Noise Reduction
SSNR
Show > Digital Image Stabilization
None
Show > Defog
None
Show > Motion Detection
4ea, polygonal zones
Show > Privacy Masking
6ea, rectangular zones
Show > Gain Control
Low / Middle / High
Show > White Balance
ATW / AWC / Manual / Indoor / Outdoor
Show > LDC
Support
Show > Electronic Shutter Speed
Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Hide > Digital PTZ
None
Show > Video Rotation
Flip, Mirror, Hallway view(90°/270°)
Hide > Hallway view
Support
Show > Analytics
Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Show > Business Intelligence
None
Hide > People Counting
None
Hide > Vehicle Counting
None
Hide > Queue Management
None
Hide > Heat Map
None
Show > Serial Interface
None
Show > Alarm I/O
Input 1ea / Output 1ea
Show > Alarm Triggers
Analytics, Network disconnect, Alarm input
Show > Alarm Events
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset)
Show > Audio Streaming
None
Show > Audio In
None
Hide > Built-in MIC
None
Show > Audio Out
None
Hide > Audio Line
None
Show > Light Type
IR LED (850nm)
Show > Light Viewable Length
20m(65.62ft)
Show > IR Viewable Length
None
Show > IR Illuminator (Optional)
None
Show > IR Radiation angle
None
Show > IR LED
None
Show > IR Wavelength
None
Show > IR Operation
None
Show > Water Removal
None
Show > Auto Tracking
None
Show > Coaxial Protocol
None
Show > Color Palettes
None
Show > Temperature Detect Range
None
Show > Temperature Accuracy
None
Show > Temperature Detection
None
Show > Additional
None
Show > Ethernet
RJ-45(10/100BASE-T)
Show > Video Compression
H.265/H.264: Main/High, MJPEG
Show > Audio Compression
None
Show > Smart Codec
WiseStreamⅡ
Hide > AI Codec
None
Hide > Video Quality Adjustment
H.264/H.265: Target bitrate level control MJPEG: Quality level control
Show > Bitrate Control
H.264/H.265: CBR or VBR MJPEG: VBR
Show > Streaming
Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Show > Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Show > SIP support (VoIP, Peer-to-peer, SIP/PBX integration)
None
Show > Security
None
Show > Application Programming Interface
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
> Security
Show > OS / Firmware Protect
Firmware encryption
Show > User authentication
Digest Authentication, Prevent brute-force attack
Show > Network authentication
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Show > Secure Communication
HTTPS, SRTP, WSS(Websocket secure)
Show > Access Control
Access control based on IP address
Show > Data Protect
Authentication information encryption, ZIP compression encryption
Show > Audit
User Access/System/Event log management
Show > Device ID
Device Certificate(Hanwha Private Root CA)
Show > Secure Storage
SDcard partition encrypt
Show > Security Certificate
None
Show > Webpage Language
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Show > Web Viewer
None
Show > Edge Storage
Micro SD/SDHC/SDXC 1slot 128GB
Hide > Storage slot
SD 1slot
Show > Memory
512MB RAM, 256MB Flash
Show > Operating Temperature / Humidity
-30°C~+55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C
Show > Storage Temperature / Humidity
-30°C~+60°C(-22°F ~ +140°F) / 0~90% RH
Show > Certification
IP66, IK10
Hide > IK Rating
IK10
Show > Input Voltage
PoE(IEEE802.3af, Class3)
Show > Power Consumption
PoE: Max 7.50W, typical 5.80W
Show > Color / Material
White / Aluminum
Hide > Color
White
Hide > Material
Aluminum
Show > RAL Code
RAL9003
Show > Product Dimensions / Weight
ø120.3x91.7mm(ø4.74x3.61"), 510g(1.12 lb)
Show > Compatible Conduit hole / Gangbox
None
Show > Hanging Mount (Dome)
SBP-122HMW
Hide > Skin Cover
None
Hide > Skin Cover (Dome)
None
Hide > Weather Cap (Dome)
SBV-120WCW
Hide > Power Module
None
Show > Backbox
SBV-120GW
