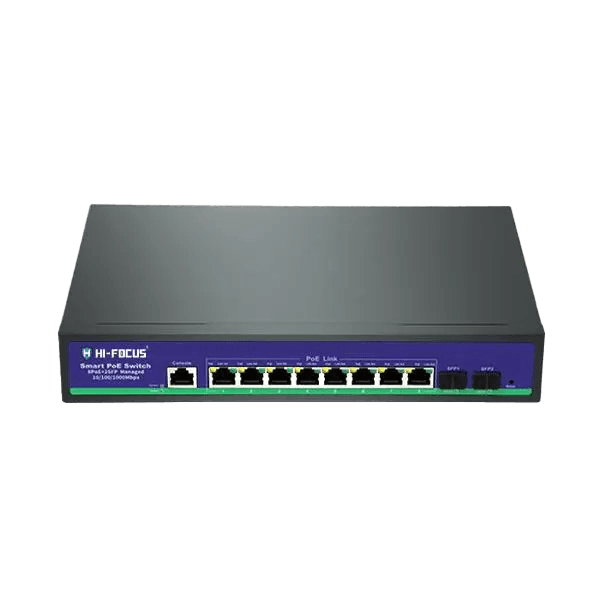

Hi- Focus 8 PORT Giga POE-SWITCH 10/100/1000+ SFP Port

HARDWARE SPECIFICATION Support Criteria IEEE 802.3, 802.3u, 802.3x, 802.3af/at, CSMA/CD, TCP/IP Port 8x10/100/1000Mbps Adaptive port， support POE function， 2x1000Mbps SFP port， 1xConsole port Basic Function Compatible with IEEE 802.3AF/AT compliant Powered Devices (PD) Port power priority feature Wire-speed forwarding MAC self-learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode Backplane bandwidth 20Gbps MAC Addresses List 8K Forwarding mode Store and forward Forwarding method 10BASE-T: 14880PPS/port 100BASE-T: 148800PPS/port 1000BASE-T: 1488000PPS/port Forwarding rate 14.9Mpps LED indicator Power, SYS, Link/Act: 10/100/1000Mbps, POE Environment Operating Temperature: -10℃ - -55℃ Storage temperature: -40°-- 85°C Power Built in power base board Input: 220V, 50HZ, Output: DC52V±5%, 2.3A Whole power≤120W Weight & Size 1KG 270mm×180mm×44mm(L×W×H) SOFTWARE SPECIFICATION Port Management Enable/Disable port Speed, duplex, MTU setting Flow-control setting Port information view Port Mirroring Support port and aggregation group access direction Port Speed Limiting Support port speed limit, the granularity of the speed limit is determined by the chip Port Isolation Support port isolation setting Storm control Support location unicast, unknown multicast, broadcast storm control Link Aggregation Manual load sharing and static LACP mode VLAN Access/Trunk/Hybrid Support VLAN division based on port, protocol and MAC MAC Support static add and delete MAC address learning quantity limit Support dynamic aging time setting Spanning Tree Support 802.1d (RSTP); Support IGMP-snooping; Support 802.1S (MSTP) Multicasting Support static add and delete; Support IGMP-snooping; Support MLD-snooping; Support V1/2/3dynamic multicast snooping DDM Support SFP/SFP+DDM ACL Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number QOS Classification based on 802.1P (COS); classification based on DSCP. Classification based on source IP, destination IP, port number; support for SP, WRR scheduling policies. Support traffic speed limit CAR LLDP Support LLDP link discovery protocol User Setting Add/Remove Users Log User login, operation, status, event record log Anti-attack DOS Defense Support for CPU protection, limiting the rate of upgoing CPU messages ARP binding (IP, MAC, PORT binding) Certification Support 802.1X port authentication; support AAA authentication Network Diagnosis Support ping, telnet, trace System Administration Device reset, configuration save/revert, upgrade management, time setting, etc.
