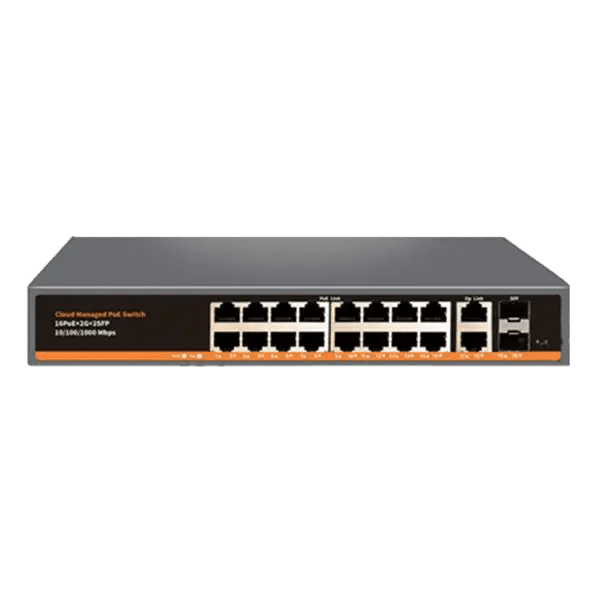

HI-Focus 16 PORT POE SWITCH
HI-Focus 16 PORT POE SWITCH - View 1

HI-Focus 16 PORT POE SWITCH

Product Features 16x1000Mbps PoE ports 2x1000Mbps Uplink ports 2x1000Mbps SFP ports Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management. WEB, TELNET, CLI management Port lightning protection 4KV POE POWER SUPPLY PoE Protocol IEEE 802.3af/at Output Power of PoE Port Single Port≤30W PoE Output Voltage DC52V±5% PoE Power Pin 1/2+, 3/6- PoE Power Distance ≤250m Network Medium 10/100/1000BASE-TX: 5 class and above non shielded twisted pair Whole Power MAX: 250W

16 PORT POE SWITCH

Support L2 management, such as VLAN, QoS, IGMP Snooping and PoE management

In Stock ( available)
NETWORK SPECIFICATION Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.1Q, IEEE 802.1p Network Medium 10/100/1000BASE-TX: 5 class and above non shielded twisted pair Data Distance ≤100M Switch Capability 40Gbps Forwarding Rate 10BASE-tx: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port MAC Address MAC address table 8K Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode Forwarding Rate of Packet 29.76Mpps SOFTWARE SPECIFICATION Web management Support Double IP; Default IP: 10.77.88.100 Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP; User: admin, Password: admin Management IP Support static IP settings Support DHCP dynamic acquisition User Setting Support change user name, change log-in password Port Management Support port disabling and enabling; Support MTU setting Support speed, duplex, and flow control settings Link Aggregation Supports up to 4 aggregation groups, with a maximum of 8 members per group; Port Isolation Support port isolation loopback protection Support loopback protection Port Mirroring Supports up to 4 sets of mirror sessions; Support mirroring of incoming and outgoing directional messages for ports and aggregation groups Port speed limit Support limits the speed of port’s in and out EEE Support energy-saving Ethernet protocol PoE Support PoE configuration SNMP Support SNMP v1&v2c; Support SNMP Traps Traps type: device cold and hot start, port up&down, authentication failure Spanning Tree Support STP, RSTP LLDP Support LLDP link layer discovery protocol VLAN Support port VLAN Support 802.1Q VLAN Support Voice VLAN Support Surveillance VLAN QOS Support 802.1p (COS) classification, DSCP classification, and port classification. Support SP, WRR, WFQ scheduling strategies Multicast Support IGMP Querier MAC management Support limit on the number of port MAC address learning Support adding and deleting static MAC addresses Support search of MAC address Support dynamic MAC address table viewing Storm Suppression Support storm suppression for unknown unicast, multicast, and broadcast packets Traffic Monitoring Support monitoring of the number of bytes sent and received, as well as the number of messages sent and received Cable Tester Support detection of cable status and cable length DHCP Snooping Support trust port settings; Support DHCP Option 82 configuration Cloud-network Link APP cloud management Network Diagnosis Support PING System Management Support system upgrade Support system backup and restore Support reset Support Web restart Support configuration saving; Support switching between Chinese and English Support system name modification
