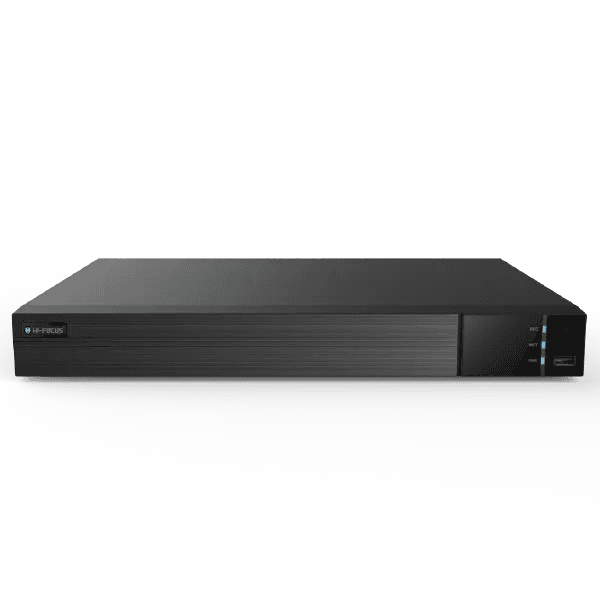

Hi-Focus 40 CHANNEL 2 SATA NETWORK VIDEO RECORDER
Hi-Focus 40 CHANNEL 2 SATA NETWORK VIDEO RECORDER - View 1

Hi-Focus 40 CHANNEL 2 SATA NETWORK VIDEO RECORDER

Product Features Support 40CH 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input H.265S/H.265+/H.265/H.264 Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse Multi-type recording: manual / timed / motion / sensor / POS / AI recording Playback: 16 CH simultaneous playback Search: time slice, time, event, tag and smart search Support face detection and comparison Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc. Support license plate recognition Support POS information overlay on live view and playback Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol Compatible with third-party IPCs, such as ONVIF, etc. Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously Authorization management, log view and device status view 4K output, true high resolution display Support PTZ preset and auto cruise Support NAT function and QRCode scanning by mobile phones Powerful mobile surveillance by smart phones with iOS and Andriod OS

40 CHANNEL 2 SATA NETWORK VIDEO RECORDER

Support 40CH 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF IPC Input

HDD Interface SATA × 2, max 10T for each HDD

In Stock ( available)
Specifications SYSTEM OS Embedded Linux VIDEO Compression H.265S/H.265+/H.265/H.264 IP Video Input 40CH IPC input Resolution 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF Network Bandwidth Incoming: 320Mbps Outgoing: 320Mbps Output HDMI1: 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source Multi-screen Display Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view AUDIO Network input 40 CH IPC audio input 2-way Audio RCA × 1 Local Input RCA × 1 Compression G.711 (U/A) RECORD Resolution 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/D1/CIF Frame Rate NTSC: 30fps; PAL: 25fps PLAYBACK Simultaneous Playback Max 16CH Search Time slice/time/event/tag/smart search Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Function Play, pause, FF, FB, digital zoom, etc DECODING CAPABILITY Live View/Playback Non-AI Mode: 1×16MP@30fps/4×8MP@30fps/9×3MP@30fps/ 16×2MP@30fps AI Mode:1×16MP@30fps/4×6MP@30fps/9×3MP@30fps/ 16×720P@30fps ALARM Mode Manual, sensor, motion, exception, smart events, etc. Input 8 CH local alarm input Output 4 CH Triggering Record, snap, preset, e-mail, etc. FACE Face Detection Performance (AI by IPC) 40CH Face Detection Performance (AI by Device) 2 CH (2MP) Face Match Performance 6 CH Comparison Capability 18 pictures / second Face Picture Database 32 libraries 10000 face pictures Face Picture Search Search by picture is supported Database Management Add, modify, delete and search face pictures Face Picture Adding Add face pictures through APP, WEB and external import Face Picture Comparison Support allow list, block list and stranger match alarm Track Track display on a map Statistical Graph of Information Bar graph Statistical Mode of Information Statistics by day, week, month, quarter as well as Customized time period PERIMETER PROTECTION Human/Vehicle Classification (AI by IPC) 40 CH Human/Vehicle Classification (AI by Device) 2CH (2MP) VIDEO METADATA Human/Vehicle Attribute Analysis (AI by IPC) Yes OTHER FUNCTIONS Fisheye Supports fisheye dewarping via NVR/Web Client/mobile APP Plate Recognition (AI by IPC) Yes NETWORK Interface 2 x RJ45 1000Mbps Protocol TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP Client Connection Max. 128 users access MOBILE DEVICE OS iOS, Andriod STORAGE HDD Interface SATA × 2, max 10T for each HDD BACKUP Local Backup U disk, USB mobile HDD Network Backup Yes EXTERNAL INTERFACE RS485 Yes (full-duplex), connect to PTZ or keyboard USB USB 3.0 × 1; USB 2.0 × 2 Remote Controller Optional GENERAL Power Supply DC12V/4A Consumption ≤ 20W (without HDD) Dimensions (mm) 380 × 268 × 48.1 (W × D × H) Working Environment -10 ～ 50 ℃，10% ～ 90% humidity
